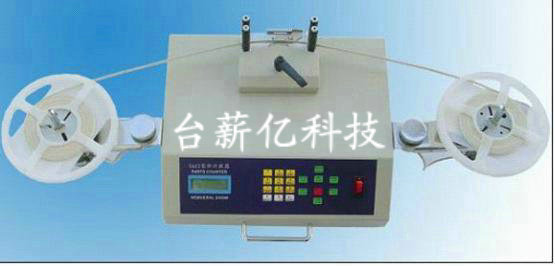

全自動SMD零件計數器
Automatic SMD Parts Counter
特 點:
1.全自動方式計算零件數量,方便點料發料作業.
2.料盤運轉中,設有防脫料裝置.
3.配有預備電源,突然停電或無市電情況下,仍可計數零件.
4.本機採用繪圖型LCD顯示幕。
5.可加裝條碼機,印表機,標籤機,或貼紙列印,方便管理作業.
Features:
1.Count automatically the quantity of parts easy for counting and providing materials.
2.A material missing protection device from running is provided ,
3.A spare electric power is fitted and available for counting even power is off or no electricity .
4.A Drawing type LCD screen is fitted.
5.A bar code device supplied as optional and easy for operation control
规格:
Specify Type |
SYM-16 |
電源Power Source |
AC110V或AC220V |
功能Capability |
200cm/MIN |
.額定功率Electronic Load |
30W |
計數量Count Capacity |
-99999~99999pcs |
機械尺寸Dimensions |
L350*W774*H184mm |
.重量Weight |
10kg |
料帶輪直徑Reel |
任何SMD料帶輪尺寸皆可使用 SMD reel parts are all usable |
.料帶間隔Pitch |
2,4,8,10,12,16,24,32,44,56mm迴圈設定 |
料帶寬度Width |
8,12,16,24,32,44,56mm |
